Creating Service Providers

Codesphere allows you to publish existing Codesphere landscapes as Managed Service Providers. This enables other developers to discover and deploy your custom solutions.

Landscape-based Service Providers​

A landscape-based service provider transforms a Codesphere landscape into a reusable blueprint that others can instantiate as managed services.

info

Publishing providers requires cluster admin permissions. Team admins can request providers to be scoped to specific teams.

Prerequisites​

Before creating a landscape-based service provider, you need:

  1. A Git repository containing a valid Codesphere landscape with a ci.yml file.
  2. A provider.yml file at the repository root defining the provider configuration.
  3. Git provider permissions configured in your Codesphere account. You can manage your Git connections in your user settings.

Provider Definition​

The provider.yml file defines all metadata and configuration schemas for your service provider.

name: mattermost
version: v1
author: Your Team
displayName: Mattermost
iconUrl: https://example.com/mattermost-icon.png
category: collaboration
description: |
  Open-source team messaging and collaboration platform.
  Supports channels, direct messaging, and file sharing.

backend:
  landscape:
    gitUrl: https://github.com/your-org/mattermost-landscape
    ciProfile: production

configSchema:
  type: object
  properties:
    SITE_NAME:
      type: string
      description: Display name for your Mattermost instance
    MAX_USERS:
      type: integer
      description: Maximum number of users allowed
      x-update-constraint: increase-only

secretsSchema:
  type: object
  properties:
    ADMIN_PASSWORD:
      type: string
      format: password

detailsSchema:
  type: object
  properties:
    hostname:
      type: string
    port:
      type: integer

Provider Fields​

FieldDescription
nameUnique identifier for the provider. Must match ^[-a-z0-9_]+$.
versionVersion string in the format v[0-9]+ (e.g., v1, v2).
displayNameHuman-readable name shown in the Marketplace UI.
iconUrlURL to the provider icon (absolute or relative path).
categoryGrouping category (e.g., databases, messaging, monitoring).
authorOrganization or individual responsible for the provider.
descriptionMarkdown-formatted description of the service.
backend.landscape.gitUrlGit repository URL containing the landscape configuration.
backend.landscape.ciProfileCI profile name from the ci.yml to use for deployments.
configSchemaJSON Schema defining user-configurable options. These values are passed to the landscape as environment variables.
secretsSchemaJSON Schema defining secret values (e.g., passwords). These values are set in the landscape's secrets vault.
detailsSchemaJSON Schema defining runtime details exposed after provisioning.

Below you can see where each schema type appears in the Codesphere UI:

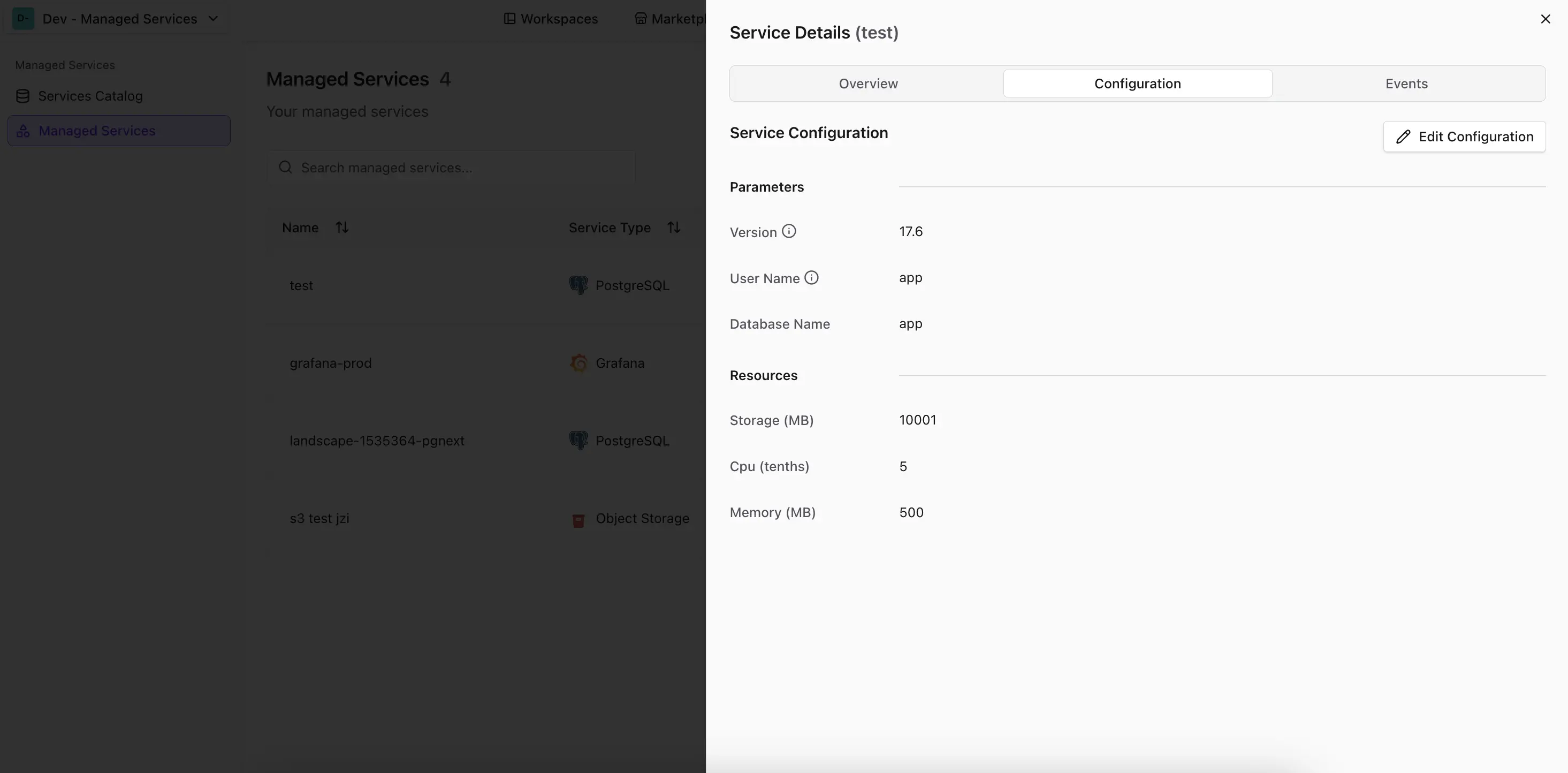

Config values from configSchema appear in the config section of the service settings and can be updated.

Config Schema in Service Settings

Publishing a Landscape-based Provider​

Providers are published via the Codesphere Public API . You can either provide a Git URL that includes the provider.yml file or the full provider specification in the payload.

The simplest approach is to provide the Git repository URL. Codesphere will fetch and validate the provider.yml automatically.

Note: Replace codesphere.com with your Codesphere instance URL if you are using a self-hosted or private deployment.

curl -X POST "https://codesphere.com/api/managed-services/providers" \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "gitUrl": "https://github.com/your-org/mattermost-landscape",
    "scope": {
      "type": "global"
    }
  }'

Provider Scopes​

When creating a provider, you can define its visibility scope:

Scope TypeDescription
globalAvailable to all teams in the Codesphere instance. Requires cluster admin permissions.
teamAvailable only to specified teams. Provide an array of teamIds.

Passing Configuration to Landscapes​

Configuration values in the provider schema are passed to the landscape as environment variables. Reference these in your ci.yml:

schemaVersion: v0.2
run:
  my-service:
    steps:
      - command: ./start.sh
    env:
      APP_VERSION: ${{ workspace.env['APP_VERSION'] }}
      ADMIN_PASSWORD: ${{ vault.ADMIN_PASSWORD }}

Secret values are injected into the landscape's vault and can be accessed using the ${{ vault.SECRET_NAME }} syntax in your ci.yml.

Update Constraints with x-update-constraint​

The configSchema supports a custom extension x-update-constraint that lets you restrict how individual properties can be changed after a service has been created. This is useful for enforcing operational rules — for example, preventing storage from being decreased or locking down a database engine version after initial setup.

Add the x-update-constraint keyword to any property in your configSchema:

configSchema:
  type: object
  properties:
    storage:
        type: integer
        description: Storage allocation in GB
        x-update-constraint: increase-only
    version:
        type: string,
        description: Version of the Postgres DB.
        enum: ['17.6', '16.10', '15.14', '14.19', '13.22']
        x-update-constraint: immutable,

Available Constraints​

ConstraintBehavior
increase-onlyThe new value must be greater than or equal to the current value. Only applies to numeric fields.
immutableThe property cannot be changed once it has been set.
info

Update constraints are only enforced when updating an existing service. During initial creation, all values are accepted as long as they pass the standard schema validation.

Supported Formats​

Provider schemas use JSON Schema validation. The following format values are supported in schema properties:

int32, int64, float, double, byte, binary, date, date-time, password, uri, hostname

Dynamic Details with x-endpoint​

The detailsSchema supports a custom OpenAPI extension x-endpoint that allows you to fetch runtime details dynamically from your service. This is useful for retrieving live status information, metrics, or other data that changes after provisioning.

When x-endpoint is set on a property, Codesphere will fetch the value from the specified endpoint. The endpoint URL supports interpolation using other details fields.

detailsSchema:
  type: object
  properties:
    hostname:
      type: string
    port:
      type: integer
    status:
      type: object
      properties:
        state:
          type: string
        uptime:
          type: number
      x-endpoint: "https://{{hostname}}:{{port}}/status"

In this example, the status property is fetched dynamically from the service's /status endpoint using the hostname and port values.

info

Only GET requests are supported for x-endpoint. The endpoint must return JSON matching the property's schema definition.

Custom REST Adapters​

Codesphere's Managed Services architecture is designed to be extensible. If landscape-based providers don't meet your specific requirements you can implement your own custom REST backend.

tip

For a complete guide on implementing the Managed Service Adapter API specification, see Create a Custom REST Backend.
